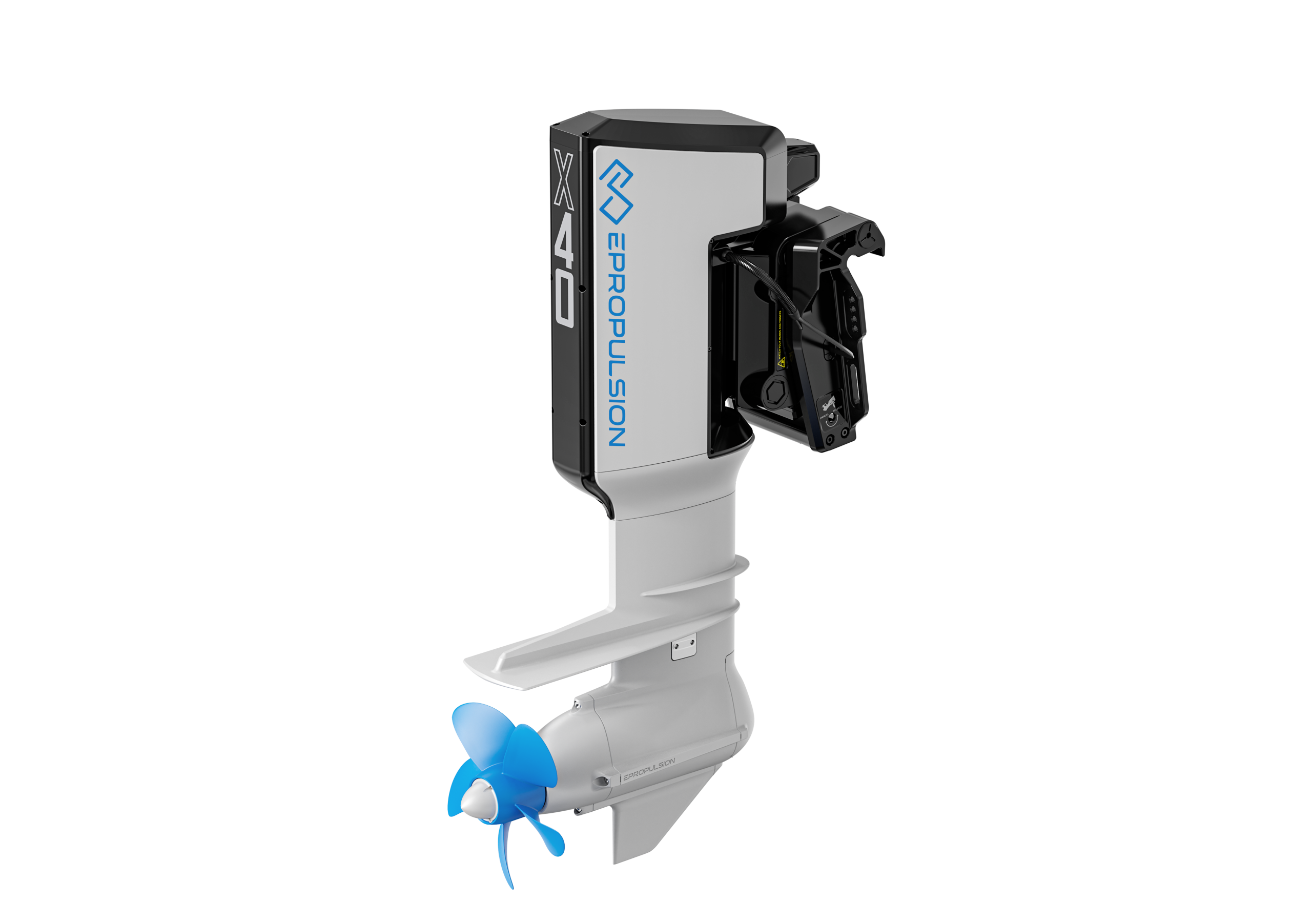

The X-Series is a breakthrough in marine electric propulsion, setting new standards for performance, efficiency, and sustainability. Precision-engineered and developed through advanced research and innovation, it combines high power density with intelligent control systems and a cutting-edge design. The result is a propulsion solution that delivers maximum reliability, effortless handling, and a cleaner, more exciting boating experience.
Vas zanima več o motorjih EPROPULSION?
Pišite nam, da se dogovorimo za termin v našem salonu, kjer vam bomo z veseljem odgovorili na vsa vaša vprašanja in vam pomagali, da si boste znali izbrati čoln, ki bo izpolnjeval vse vaše želje in potrebe.
| X-40 | X-20 | X-12 | ||||
|---|---|---|---|---|---|---|
| L Shaft | XL Shaft | L Shaft | XL Shaft | S Shaft | L Shaft | |
| Weight | 99 kg | 101.5 kg | 79 kg | 81 kg | 48 kg | 50 kg |
| Shaft Length | 508 mm (20") | 635 mm (25") | 508 mm (20") | 635 mm (25") | 381 mm (15") | 508 mm (20") |
| Dimensions (L × W × H) | 757 × 360 × 1233 mm | 757 × 360 × 1360 mm | 674 × 360 × 1229 mm | 674 × 360 × 1356 mm | 560 × 266 × 978 mm | 560 × 266 × 1105 mm |
| Input power | 40 kW | 20 kW | 12 kW | |||
| Nominal voltage | 96 VDC | 96 VDC | 96 VDC | |||
| Cooling System | Closed Loop Liquid Cooling | Natural cooling | Natural cooling | |||
| Rated rotational speed | 1500 - 2100 rpm | 1200 - 1800 rpm | 1100 - 2000 rpm | |||
| Trim & Tilt | Power Trim/Tilt | Power Trim/Tilt | Power Trim/Tilt | |||
| Trim/Tilt Angle | -4° to 61° | -4° to 61° | -4° to 61° | |||
| Steering | Integrated electric steering | Integrated electric steering | Integrated electric steering | |||
| Steering Angle | ±45° | ±45° | ±45° | |||
| Propeller | 15" × 10 3/4" (available in L&R rotation) 13 3/8" × 16 3/4" (available in L&R rotation) | 15" × 10 3/4" (available in L&R rotation) 13 3/8" × 16 3/4" (available in L&R rotation) | 11 13/16" × 10 5/8" (available in L&R rotation) 11 7/16" × 14 3/16" (available in L&R rotation) |
|||
