Experience unparalleled boating with our E-Series batteries, expertly designed for compatibility with ePropulsion’s Spirit, Navy, and POD motors. Offering consistent, high-quality power and sustainable technology, these batteries redefine marine propulsion for today’s mariner.
Interested in learning more about EPROPULSION engines?
Contact us to schedule an appointment at our showroom, where we will be happy to answer all your questions and help you choose a boat that will meet all your needs and desires.
| Specs | E60 | E163 | E100 NEW |
|---|---|---|---|
| Capacity | 3072 Wh / 60 Ah | 8345 Wh / 163 Ah | 5120 Wh / 100 Ah |
| Rated Voltage | 51.2 V | 51.2 V | 51.2 V |
| Battery Life | 3,000 cycles at 80% SoH | 3,000 cycles at 80% SoH | 3,000 cycles at 80% SoH |
| Weight | 33 kg | 76 kg | 48.5 kg / 106.9lbs |
| Dimensions | 512 x 290 x 300 mm (20.2 x 11.4 x 11.8 in) | 470 x 295 x 495 mm (18.5 x 11.6 x 19.5 in) | 630 x 320 x 240 mm (24.8 x 12.6 x 9.5 in) |
| Cut-off Voltage | 41.6 V | 41.6 V | 41.6 V |
| Final Charging Voltage | 57.6 V | 57.6 V | 57.6 V |
| Max Continuous Discharging Current | 70 A | 150 A | 150 A |
| Series Connection | N/A | N/A | 2 (Cannot connect in parallel when used in series) |
| Parallel Connection | Up to 16 | Up to 16 | Up to 16 |
| Cell Configuration | 16S4P | 16S1P | 16S1P |
| Charger | E-Series battery charger | E-Series battery charger | E-Series battery charger or G-Series battery charger when upgraded to 96V system |
| Charging Time (220V) | One charger: 2.7 Hrs Two chargers: 1.3 Hrs | One charger: 7.2 Hrs Two chargers: 3.6 Hrs | One E100 Battery With one E-Series charger: 5.1 hrs With two E-Series chargers: 2.6 hrs Two E100 Batteries are connected in series With one G-Series charger 16A: 3.5 hrs With one G-Series charger 32A: 1.8 hrs |
| Charging Time (110V) | One charger: 4 Hrs Two chargers: 2 Hrs | One charger: 11 Hrs Two chargers: 5.4 Hrs | One E100 Battery With one E-Series charger: 8.5 hrs With two E-Series chargers: 4.3 hrs Two E100 Batteries are connected in series With one G-Series charger 16A: 7 hrs With one G-Series charger 32A: 3.5 hrs |
| Charging Temperature | 0 to 55℃ (32 to 131˚F) | 0 to 55℃ (32 to 131˚F) | 0 to 55℃ (32 to 131˚F) |
| Discharging Temperature | -10 to 60℃ (14 to 140˚F) | -10 to 60℃ (14 to 140˚F) | -10 to 60℃ (14 to 140˚F) |
| Communication | Available: CAN-Bus for Parallel RS485 for ePropulsion motors | Available: CAN-Bus for Parallel RS485 for ePropulsion motors | One RS485 for ePropulsion 48V motors One CAN (twoports) for parallel or series batteries One CAN for ePropulsion 96V motor One CAN for 48V or 96V charger |
| Shipping Classification | UN3480, Class 9, UN38.3 Certified | UN3480, Class 9, UN38.3 Certified | UN3480, Class 9, UN38.3 Certified |
| Approvals | CE, UKCA, FCC | CE, UKCA, FCC | CE, UKCA, FCC |
| Warranty (Non-Commercial Use) | 2 years | 2 years | 2 years |
Powers 48V motors (1-6 kW) , including Spirit, Navy, and Pod Drive, with single or parallel links up to 16 batteries.
The display shows SoC, voltage, current, and alarms for easy monitoring of battery status.
The all-metal housing is reliable, weather-resistant, impact-resistant, and drop-proof.
The built-in intelligent Battery Management System (BMS) continuously monitors and regulates operation, ensures reliable protection and maximum user safety.
Integrates with third-party gateways for enhanced connectivity.
Engineered for durability, the E-Series LiFePO4 batteries provide up to 3,000 cycles at 80% SoH outlasts lead-acid batteries.

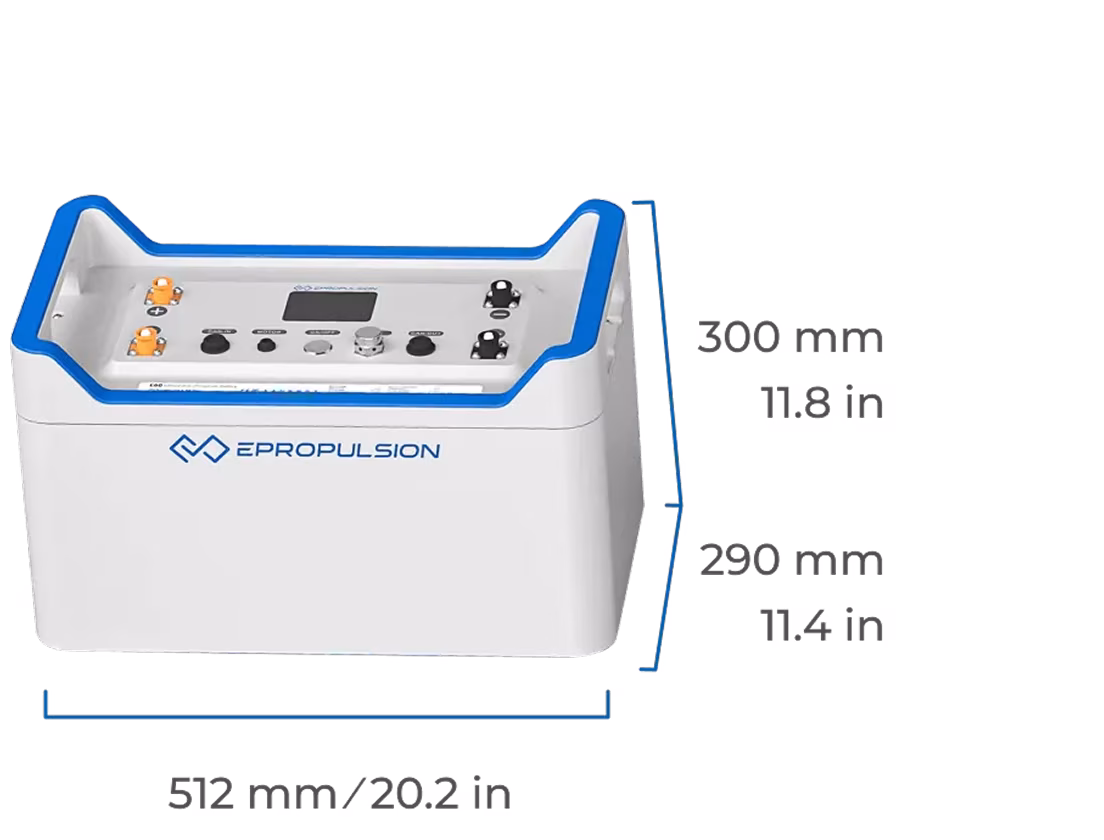

E60
3072 Wh / 60 Ah
A single E60 can support the Navy 3.0 Evo (6HP) at full output power.
The height of E60 battery is only 300 mm, allowing flexible installation under the boat seat or other available spaces.
Features a new innovative double-layer plastic housing design weighing only 33 kg and can be easily lifted by two persons.
E163
8345 Wh / 163 Ah
– HIGH PERFORMANCE
A single E163 provides sufficient capacity to support the Navy 6.0 Evo (9.9 HP) at full output power.
– FLEXIBLE INSTALLATION
The all-metal casing ensures reliability and offers weather, impact, and drop resistance.
– HIGH RELIABILITY
An all-metal casing enhances durability while providing resistance to weather, impact and drops, ensuring dependable performance in demanding marine environments.
E100
5120 Wh / 100 Ah
– HIGH PERFORMANCE
A single E100 can extend battery range to support Navy 6.0 Evo at full output power.
– UPGRADE TO 96V SYSTEM
Designed to support an upgrade to a 96V eSSA system by using two batteries in a series connection. Suitable for the X12, P12, and I-10 motors.
– COMPACT SIZE FOR EASY STORAGE
The E100 battery offers two-sided installation options. With a height of just 240mm, it enables flexible placement under seats or in other available spaces across various boat types, maximizing storage and ensuring easy access.
